SmartMatrixAPA102.h File Reference

#include <MatrixHardware_Teensy4_ShieldV5.h>
#include <SmartMatrix.h>

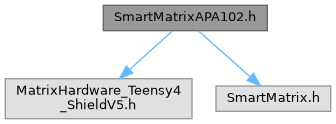

Include dependency graph for SmartMatrixAPA102.h:

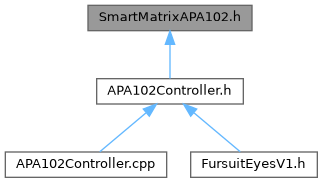

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Macros
#define	SMARTMATRIXHUB75
#define	COLOR_DEPTH   24
	Specifies the color depth used for storing pixels in the layers.
#define	ENABLE_APA102_REFRESH   1
	Enables APA102 refresh support.

Variables
const uint16_t	kApaMatrixWidth = 176
	Width of the APA matrix or strip.
const uint16_t	kApaMatrixHeight = 1
	Height of the APA matrix. Set to 1 for strips.
const uint8_t	kApaRefreshDepth = 36
	Not currently used for APA matrices.
const uint8_t	kApaDmaBufferRows = 1
	Not currently used for APA matrices.
const uint8_t	kApaPanelType = 0
	Not currently used for APA matrices.
const uint32_t	kApaMatrixOptions = (SM_APA102_OPTIONS_COLOR_ORDER_BGR)
	Options for APA matrices, including color order.
const uint8_t	kApaBackgroundLayerOptions = (SM_BACKGROUND_OPTIONS_NONE)
	Background layer options for APA matrices.

Macro Definition Documentation

COLOR_DEPTH

#define COLOR_DEPTH   24

Specifies the color depth used for storing pixels in the layers.

Use 24 for most sketches. If the sketch uses type rgb24 directly, set COLOR_DEPTH to 24.

Definition at line 33 of file SmartMatrixAPA102.h.

ENABLE_APA102_REFRESH

#define ENABLE_APA102_REFRESH   1

Enables APA102 refresh support.

Definition at line 39 of file SmartMatrixAPA102.h.

SMARTMATRIXHUB75

#define SMARTMATRIXHUB75

Definition at line 17 of file SmartMatrixAPA102.h.

Variable Documentation

kApaBackgroundLayerOptions

kApaBackgroundLayerOptions = (SM_BACKGROUND_OPTIONS_NONE)

Background layer options for APA matrices.

Definition at line 83 of file SmartMatrixAPA102.h.

kApaDmaBufferRows

kApaDmaBufferRows = 1

Not currently used for APA matrices.

Definition at line 63 of file SmartMatrixAPA102.h.

kApaMatrixHeight

kApaMatrixHeight = 1

Height of the APA matrix. Set to 1 for strips.

Definition at line 51 of file SmartMatrixAPA102.h.

kApaMatrixOptions

kApaMatrixOptions = (SM_APA102_OPTIONS_COLOR_ORDER_BGR)

Options for APA matrices, including color order.

The default color order is BGR. Adjust as needed to match your LEDs.

Definition at line 77 of file SmartMatrixAPA102.h.

kApaMatrixWidth

kApaMatrixWidth = 176

Width of the APA matrix or strip.

Definition at line 45 of file SmartMatrixAPA102.h.

Referenced by APA102Controller::Display(), HUB75Controller::Display(), and HUB75ControllerSplit::Display().

kApaPanelType

kApaPanelType = 0

Not currently used for APA matrices.

Definition at line 69 of file SmartMatrixAPA102.h.

kApaRefreshDepth

kApaRefreshDepth = 36

Not currently used for APA matrices.

Definition at line 57 of file SmartMatrixAPA102.h.
