Renders and displays information on an SSD1306/SH1106 display. More...

#include <SSD1306.h>

Inheritance diagram for HeadsUpDisplay:

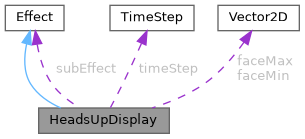

Collaboration diagram for HeadsUpDisplay:

[legend]

Public Member Functions
	HeadsUpDisplay (Vector2D faceMin, Vector2D faceMax)
	Constructs a HeadsUpDisplay with face rendering boundaries.

void	SetFaceArray (const __FlashStringHelper **faceNames)
	Sets the array of face names.

void	SetFaceMin (Vector2D faceMin)
	Sets the minimum face rendering coordinates.

void	SetFaceMax (Vector2D faceMax)
	Sets the maximum face rendering coordinates.

void	Initialize ()
	Initializes the display and related components.

void	ResetI2CBus ()
	Resets the I2C bus in case of communication errors.

void	Update ()
	Updates the display content based on the current state.

void	SetEffect (Effect *effect)
	Sets the sub-effect to be applied to the display.

void	ApplyEffect (IPixelGroup *pixelGroup)
	Applies the effect to the specified pixel group.

void	CheckInvertPrintText (int16_t x, int16_t y, uint8_t menu, const String &str)
	Prints text conditionally inverted based on menu selection.

Public Member Functions inherited from Effect
	Effect ()
	Default constructor for the `Effect` class.

void	SetRatio (float ratio)
	Sets the scaling ratio for the effect.

Private Member Functions
void	ResetDisplayBuffer ()
	Resets the display buffer to a blank state.

void	EnableBitFaceRender (float xIn, float yIn)
	Enables rendering for a bitmap face within specified coordinates.

void	UpdateFaceInformation ()
	Updates face rendering information.

Private Attributes
const __FlashStringHelper *	percentArray [10] = {F("10%"), F("20%"), F("30%"), F("40%"), F("50%"), F("60%"), F("70%"), F("80%"), F("90%"), F("100%")}
	Battery percentages.

const __FlashStringHelper *	effectArray [10] = {F("NONE"), F("PHASEY"), F("PHASEX"), F("PHASER"), F("GLITCHX"), F("MAGNET"), F("FISHEYE"), F("BLURH"), F("BLURV"), F("BLURR")}

const __FlashStringHelper *	colorArray [10] = {F("GRDIENT"), F("YELLOW"), F("ORANGE"), F("WHITE"), F("GREEN"), F("PURPLE"), F("RED"), F("BLUE"), F("RAINBOW"), F("NOISE")}

const __FlashStringHelper *	onOffArray [2] = {F("OFFLINE"), F("ONLINE")}
	Online/Offline statuses.

const __FlashStringHelper *	hueArray [10] = {F("0 DEG"), F("36 DEG"), F("72 DEG"), F("108 DEG"), F("144 DEG"), F("180 DEG"), F("216 DEG"), F("252 DEG"), F("288 DEG"), F("324 DEG")}
	Hue options.

const __FlashStringHelper *	faceArray [10] = {F("DEFAULT"), F("ANGRY"), F("DOUBT"), F("FROWN"), F("LOOKUP"), F("SAD"), F("AUDIO1"), F("AUDIO2"), F("AUDIO3")}
	Face names.

const __FlashStringHelper **	faceNames
	Names of each face to be displayed on the screen.

bool	useExternalFace = false
	To decide if it uses faceArray or faceNames for the face.

Effect *	subEffect
	Used to capture the complete rendered frame.

TimeStep	timeStep = TimeStep(5)
	Limits the display to update 5 times per second.

bool	didBegin = false
	True if the I2C interface started correctly.

bool	splashFinished = false
	True when the splash startup screen is finished.

Vector2D	faceMin
	Minimum coordinate for face on display.

Vector2D	faceMax
	Maximum coordinate for face on display.

uint32_t	startMillis
	Start time of the display for the splash screen.

Static Private Attributes
static const uint16_t	SCREEN_WIDTH = 128
	Width of the OLED screen.

static const uint16_t	SCREEN_HEIGHT = 64
	Height of the OLED screen.

static const int8_t	OLED_RESET = -1
	Reset pin for the display.

static const uint8_t	faceXMinPosition = 66
	Minimum X position for face rendering.

static const uint8_t	faceXMaxPosition = 124
	Maximum X position for face rendering.

static const uint8_t	faceYMinPosition = 35
	Minimum Y position for face rendering.

static const uint8_t	faceYMaxPosition = 60
	Maximum Y position for face rendering.

static const uint32_t	splashTime = 2500
	Duration for splash screen in milliseconds.

static const int	bufferSize = 2048
	Buffer size for display rendering.

static Adafruit_SSD1306	display

static uint8_t	faceBitmap [bufferSize]
	Background template for displaying the grids.

static const uint8_t	CoelaSplash []

static const uint8_t	PrototracerSplash []

static const uint8_t	FaceTemplate []

Additional Inherited Members
Protected Attributes inherited from Effect
float	ratio = 0.0f
	A scaling ratio used for dynamic effect adjustments.

Detailed Description

Renders and displays information on an SSD1306/SH1106 display.

The HeadsUpDisplay class acts as an Effect, allowing it to intercept and process rendered frames efficiently for display on OLED screens. It supports a variety of pre-configured menus, effects, and face animations.

Definition at line 39 of file SSD1306.h.

Constructor & Destructor Documentation

◆ HeadsUpDisplay()

HeadsUpDisplay	(	Vector2D	faceMin,
		Vector2D	faceMax
	)

Constructs a HeadsUpDisplay with face rendering boundaries.

Parameters

faceMin	Minimum coordinates for face rendering.
faceMax	Maximum coordinates for face rendering.

Definition at line 212 of file SSD1306.cpp.

References faceMax, and faceMin.

Member Function Documentation

◆ ApplyEffect()

void ApplyEffect ( IPixelGroup * pixelGroup )

virtual

Applies the effect to the specified pixel group.

Parameters

pixelGroup Pointer to the pixel group to process.

Implements Effect.

Definition at line 315 of file SSD1306.cpp.

References Effect::ApplyEffect(), EnableBitFaceRender(), RGBColor::G, IPixelGroup::GetColor(), IPixelGroup::GetCoordinate(), IPixelGroup::GetPixelCount(), RGBColor::R, subEffect, Vector2D::X, and Vector2D::Y.

◆ CheckInvertPrintText()

void CheckInvertPrintText	(	int16_t	x,
		int16_t	y,
		uint8_t	menu,
		const String &	str
	)

Prints text conditionally inverted based on menu selection.

Parameters

x	X-coordinate for the text.
y	Y-coordinate for the text.
menu	Current menu index.
str	The string to print.

Definition at line 382 of file SSD1306.cpp.

References display, and Menu::GetCurrentMenu().

Referenced by UpdateFaceInformation().

◆ EnableBitFaceRender()

void EnableBitFaceRender	(	float	xIn,
		float	yIn
	)

private

Enables rendering for a bitmap face within specified coordinates.

Parameters

xIn	X-coordinate input for face rendering.
yIn	Y-coordinate input for face rendering.

Definition at line 336 of file SSD1306.cpp.

References Mathematics::ConstrainMap(), faceBitmap, faceMax, faceMin, faceXMaxPosition, faceXMinPosition, faceYMaxPosition, faceYMinPosition, Vector2D::X, and Vector2D::Y.

Referenced by ApplyEffect().

◆ Initialize()

void Initialize ( )

Initializes the display and related components.

Definition at line 230 of file SSD1306.cpp.

References didBegin, display, ResetDisplayBuffer(), and startMillis.

Referenced by ProtogenProject::Initialize().

◆ ResetDisplayBuffer()

void ResetDisplayBuffer ( )

private

Resets the display buffer to a blank state.

Definition at line 331 of file SSD1306.cpp.

References faceBitmap.

Referenced by Initialize(), and Update().

◆ ResetI2CBus()

void ResetI2CBus ( )

Resets the I2C bus in case of communication errors.

Definition at line 275 of file SSD1306.cpp.

Referenced by Update().

◆ SetEffect()

void SetEffect ( Effect * effect )

Sets the sub-effect to be applied to the display.

Parameters

effect Pointer to the Effect to be applied.

Definition at line 311 of file SSD1306.cpp.

References subEffect.

Referenced by ProtogenProject::UpdateFace().

◆ SetFaceArray()

void SetFaceArray ( const __FlashStringHelper ** faceNames )

Sets the array of face names.

Parameters

faceNames Pointer to an array of face names.

Definition at line 217 of file SSD1306.cpp.

References faceNames, and useExternalFace.

Referenced by AceAnimation::AceAnimation(), ArrowAnimation::ArrowAnimation(), BetaProject::BetaProject(), DrGonzoProject::DrGonzoProject(), DrGonzoTest::DrGonzoTest(), FursuitEyesV1::FursuitEyesV1(), ProtogenHUB75Project::ProtogenHUB75Project(), ProtogenWS35Project::ProtogenWS35Project(), SageAnimation::SageAnimation(), SplatAnimation::SplatAnimation(), and UnicornZhenjaAnimation::UnicornZhenjaAnimation().

◆ SetFaceMax()

void SetFaceMax ( Vector2D faceMax )

Sets the maximum face rendering coordinates.

Parameters

faceMax Maximum coordinates for face rendering.

Definition at line 226 of file SSD1306.cpp.

References faceMax.

Referenced by ProtogenProject::ProtogenProject().

◆ SetFaceMin()

void SetFaceMin ( Vector2D faceMin )

Sets the minimum face rendering coordinates.

Parameters

faceMin Minimum coordinates for face rendering.

Definition at line 222 of file SSD1306.cpp.

References faceMin.

Referenced by ProtogenProject::ProtogenProject().

◆ Update()

void Update ( )

Updates the display content based on the current state.

Definition at line 281 of file SSD1306.cpp.

References CoelaSplash, didBegin, display, TimeStep::IsReady(), PrototracerSplash, ResetDisplayBuffer(), ResetI2CBus(), SCREEN_HEIGHT, SCREEN_WIDTH, splashFinished, splashTime, startMillis, timeStep, and UpdateFaceInformation().

Referenced by ProtogenProject::UpdateFace().

◆ UpdateFaceInformation()

void UpdateFaceInformation ( )

private

Updates face rendering information.

Definition at line 348 of file SSD1306.cpp.

References CheckInvertPrintText(), colorArray, display, effectArray, faceArray, faceBitmap, faceNames, FaceTemplate, Menu::GetAccentBrightness(), Menu::GetBrightness(), Menu::GetEffectS(), Menu::GetFaceColor(), Menu::GetFaceSize(), Menu::GetFaceState(), Menu::GetFanSpeed(), Menu::GetHueB(), Menu::GetHueF(), Menu::GetMicLevel(), hueArray, onOffArray, percentArray, Menu::UseBoopSensor(), useExternalFace, and Menu::UseMicrophone().

Referenced by Update().

Member Data Documentation

◆ bufferSize

const int bufferSize = 2048

staticprivate

Buffer size for display rendering.

Definition at line 49 of file SSD1306.h.

◆ CoelaSplash

const uint8_t CoelaSplash

staticprivate

Definition at line 11 of file SSD1306.h.

Referenced by Update().

◆ colorArray

const __FlashStringHelper* colorArray[10] = {F("GRDIENT"), F("YELLOW"), F("ORANGE"), F("WHITE"), F("GREEN"), F("PURPLE"), F("RED"), F("BLUE"), F("RAINBOW"), F("NOISE")}

private

Definition at line 53 of file SSD1306.h.

Referenced by UpdateFaceInformation().

◆ didBegin

bool didBegin = false

private

True if the I2C interface started correctly.

Definition at line 63 of file SSD1306.h.

Referenced by Initialize(), and Update().

◆ display

Adafruit_SSD1306 display

staticprivate

Definition at line 72 of file SSD1306.h.

Referenced by CheckInvertPrintText(), Initialize(), Update(), and UpdateFaceInformation().

◆ effectArray

const __FlashStringHelper* effectArray[10] = {F("NONE"), F("PHASEY"), F("PHASEX"), F("PHASER"), F("GLITCHX"), F("MAGNET"), F("FISHEYE"), F("BLURH"), F("BLURV"), F("BLURR")}

private

Definition at line 52 of file SSD1306.h.

Referenced by UpdateFaceInformation().

◆ faceArray

const __FlashStringHelper* faceArray[10] = {F("DEFAULT"), F("ANGRY"), F("DOUBT"), F("FROWN"), F("LOOKUP"), F("SAD"), F("AUDIO1"), F("AUDIO2"), F("AUDIO3")}

private

Face names.

Definition at line 56 of file SSD1306.h.

Referenced by UpdateFaceInformation().

◆ faceBitmap

uint8_t faceBitmap

staticprivate

Background template for displaying the grids.

Definition at line 74 of file SSD1306.h.

Referenced by EnableBitFaceRender(), ResetDisplayBuffer(), and UpdateFaceInformation().

◆ faceMax

Vector2D faceMax

private

Maximum coordinate for face on display.

Definition at line 66 of file SSD1306.h.

Referenced by EnableBitFaceRender(), HeadsUpDisplay(), and SetFaceMax().

◆ faceMin

Vector2D faceMin

private

Minimum coordinate for face on display.

Definition at line 65 of file SSD1306.h.

Referenced by EnableBitFaceRender(), HeadsUpDisplay(), and SetFaceMin().

◆ faceNames

const __FlashStringHelper** faceNames

private

Names of each face to be displayed on the screen.

Definition at line 58 of file SSD1306.h.

Referenced by SetFaceArray(), and UpdateFaceInformation().

◆ FaceTemplate

const uint8_t FaceTemplate

staticprivate

Definition at line 145 of file SSD1306.h.

Referenced by UpdateFaceInformation().

◆ faceXMaxPosition

const uint8_t faceXMaxPosition = 124

staticprivate

Maximum X position for face rendering.

Definition at line 45 of file SSD1306.h.

Referenced by EnableBitFaceRender().

◆ faceXMinPosition

const uint8_t faceXMinPosition = 66

staticprivate

Minimum X position for face rendering.

Definition at line 44 of file SSD1306.h.

Referenced by EnableBitFaceRender().

◆ faceYMaxPosition

const uint8_t faceYMaxPosition = 60

staticprivate

Maximum Y position for face rendering.

Definition at line 47 of file SSD1306.h.

Referenced by EnableBitFaceRender().

◆ faceYMinPosition

const uint8_t faceYMinPosition = 35

staticprivate

Minimum Y position for face rendering.

Definition at line 46 of file SSD1306.h.

Referenced by EnableBitFaceRender().

◆ hueArray

const __FlashStringHelper* hueArray[10] = {F("0 DEG"), F("36 DEG"), F("72 DEG"), F("108 DEG"), F("144 DEG"), F("180 DEG"), F("216 DEG"), F("252 DEG"), F("288 DEG"), F("324 DEG")}

private

Hue options.

Definition at line 55 of file SSD1306.h.

Referenced by UpdateFaceInformation().

◆ OLED_RESET

const int8_t OLED_RESET = -1

staticprivate

Reset pin for the display.

Definition at line 43 of file SSD1306.h.

◆ onOffArray

const __FlashStringHelper* onOffArray[2] = {F("OFFLINE"), F("ONLINE")}

private

Online/Offline statuses.

Definition at line 54 of file SSD1306.h.

Referenced by UpdateFaceInformation().

◆ percentArray

const __FlashStringHelper* percentArray[10] = {F("10%"), F("20%"), F("30%"), F("40%"), F("50%"), F("60%"), F("70%"), F("80%"), F("90%"), F("100%")}

private

Battery percentages.

Definition at line 51 of file SSD1306.h.

Referenced by UpdateFaceInformation().

◆ PrototracerSplash

const uint8_t PrototracerSplash

staticprivate

Definition at line 78 of file SSD1306.h.

Referenced by Update().

◆ SCREEN_HEIGHT

const uint16_t SCREEN_HEIGHT = 64

staticprivate

Height of the OLED screen.

Definition at line 42 of file SSD1306.h.

Referenced by Update().

◆ SCREEN_WIDTH

const uint16_t SCREEN_WIDTH = 128

staticprivate

Width of the OLED screen.

Definition at line 41 of file SSD1306.h.

Referenced by Update().

◆ splashFinished

bool splashFinished = false

private

True when the splash startup screen is finished.

Definition at line 64 of file SSD1306.h.

Referenced by Update().

◆ splashTime

const uint32_t splashTime = 2500

staticprivate

Duration for splash screen in milliseconds.

Definition at line 48 of file SSD1306.h.

Referenced by Update().

◆ startMillis

uint32_t startMillis

private

Start time of the display for the splash screen.

Definition at line 67 of file SSD1306.h.

Referenced by Initialize(), and Update().

◆ subEffect

Effect* subEffect

private

Used to capture the complete rendered frame.

Definition at line 61 of file SSD1306.h.

Referenced by ApplyEffect(), and SetEffect().

◆ timeStep

TimeStep timeStep = TimeStep(5)

private

Limits the display to update 5 times per second.

Definition at line 62 of file SSD1306.h.

Referenced by Update().

◆ useExternalFace

bool useExternalFace = false

private

To decide if it uses faceArray or faceNames for the face.

Definition at line 59 of file SSD1306.h.

Referenced by SetFaceArray(), and UpdateFaceInformation().

The documentation for this class was generated from the following files:

Public Member Functions

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ HeadsUpDisplay()

Member Function Documentation

◆ ApplyEffect()

◆ CheckInvertPrintText()

◆ EnableBitFaceRender()

◆ Initialize()

◆ ResetDisplayBuffer()

◆ ResetI2CBus()

◆ SetEffect()

◆ SetFaceArray()

◆ SetFaceMax()

◆ SetFaceMin()

◆ Update()

◆ UpdateFaceInformation()

Member Data Documentation

◆ bufferSize

◆ CoelaSplash

◆ colorArray

◆ didBegin

◆ display

◆ effectArray

◆ faceArray

◆ faceBitmap

◆ faceMax

◆ faceMin

◆ faceNames

◆ FaceTemplate

◆ faceXMaxPosition

◆ faceXMinPosition

◆ faceYMaxPosition

◆ faceYMinPosition

◆ hueArray

◆ OLED_RESET

◆ onOffArray

◆ percentArray

◆ PrototracerSplash

◆ SCREEN_HEIGHT

◆ SCREEN_WIDTH

◆ splashFinished

◆ splashTime

◆ startMillis

◆ subEffect

◆ timeStep

◆ useExternalFace
