Simulates a TV static effect with noise, scanlines, and color variations. More...

#include <TVStatic.h>

Inheritance diagram for TVStatic:

[legend]

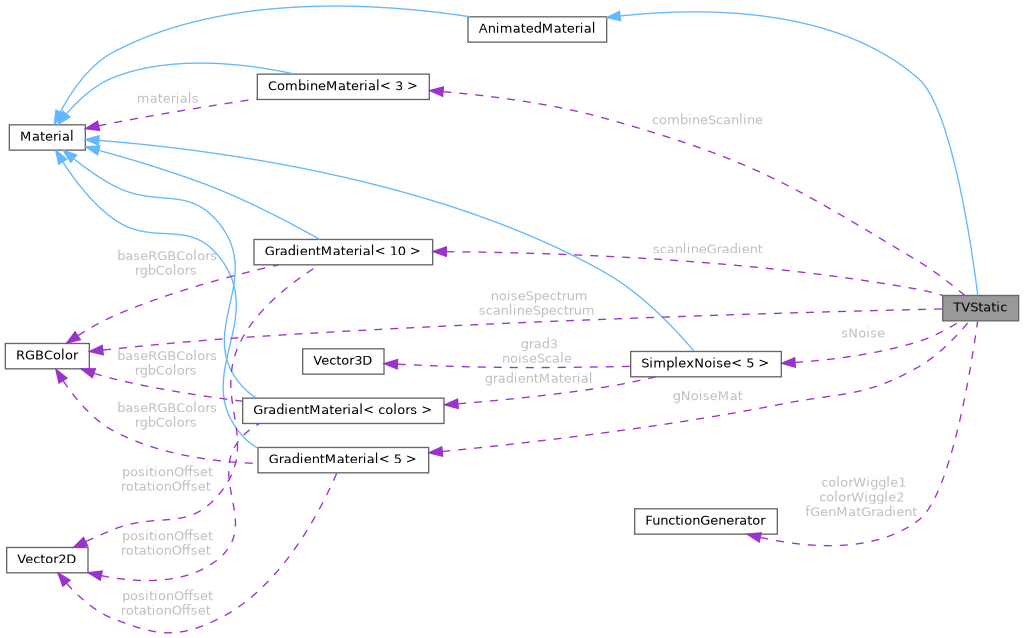

Collaboration diagram for TVStatic:

[legend]

Public Member Functions
	TVStatic ()
	Constructor for TVStatic.

void	Update (float ratio)
	Updates the animation parameters for the TV static effect.

Material *	GetMaterial ()
	Retrieves the combined material representing the TV static effect.

RGBColor	GetRGB (const Vector3D &position, const Vector3D &normal, const Vector3D &uvw) override
	Computes the color at a given position in the material.

Public Member Functions inherited from Material
virtual	~Material ()=default
	Virtual destructor for proper cleanup in derived classes.

Private Attributes
FunctionGenerator	colorWiggle1 = FunctionGenerator(FunctionGenerator::Sine, -40.0f, 20.0f, 1.95f)
	Function for animating color wiggles.

FunctionGenerator	colorWiggle2 = FunctionGenerator(FunctionGenerator::Sine, -10.0f, 10.0f, 0.87f)
	Secondary function for color variation.

FunctionGenerator	fGenMatGradient = FunctionGenerator(FunctionGenerator::Sine, 0.0f, 0.5f, 6.65f)
	Function for gradient animation.

RGBColor	noiseSpectrum [5]
	Spectrum for simplex noise coloring.

GradientMaterial< 5 >	gNoiseMat = GradientMaterial<5>(noiseSpectrum, 2.0f, false, true)
	Gradient for simplex noise material.

SimplexNoise< 5 >	sNoise = SimplexNoise<5>(1, &gNoiseMat)
	Simplex noise generator for TV static.

float	simplexNoiseDepth = 0.0f
	Depth value for simplex noise animation.

RGBColor	scanlineSpectrum [10]
	Spectrum for scanline effects.

GradientMaterial< 10 >	scanlineGradient = GradientMaterial<10>(scanlineSpectrum, 100.0f, false, false)
	Scanline gradient material.

ColorTest	colorTest = ColorTest(Vector2D(192.0f, 96.0f), Vector2D(140.0f, 72.0f))
	Color test overlay.

CombineMaterial< 3 >	combineScanline = CombineMaterial<3>()
	Material combiner for layering effects.

Additional Inherited Members
Public Types inherited from Material
enum	Method { Base , Add , Subtract , Multiply , Divide , Darken , Lighten , Screen , Overlay , SoftLight , Replace , EfficientMask , Bypass }
	Defines blending methods for combining colors. More...

Detailed Description

Simulates a TV static effect with noise, scanlines, and color variations.

The TVStatic class generates a dynamic and customizable TV static effect using a combination of simplex noise, gradient materials, scanline effects, and color overlays. The effect includes animation based on function generators and allows for layering multiple materials.

Definition at line 30 of file TVStatic.h.

Constructor & Destructor Documentation

◆ TVStatic()

TVStatic ( )

inline

Constructor for TVStatic.

Initializes the materials and sets up the layers for combining the noise, scanlines, and color effects.

Definition at line 74 of file TVStatic.h.

References CombineMaterial< materialCount >::AddMaterial(), Material::Base, colorTest, combineScanline, Material::Lighten, Material::Multiply, scanlineGradient, GradientMaterial< colorCount >::SetRotationAngle(), and sNoise.

Member Function Documentation

◆ GetMaterial()

Material * GetMaterial ( )

virtual

Retrieves the combined material representing the TV static effect.

Returns: Pointer to the combined material.

Implements AnimatedMaterial.

Definition at line 17 of file TVStatic.cpp.

References combineScanline.

◆ GetRGB()

RGBColor GetRGB	(	const Vector3D &	position,
		const Vector3D &	normal,
		const Vector3D &	uvw
	)

overridevirtual

Computes the color at a given position in the material.

This method combines the noise, scanline, and color test effects to generate the final color.

Parameters

position	The position in 3D space.
normal	The surface normal vector.
uvw	The texture coordinates.

Returns: The computed color as an RGBColor.

Implements Material.

Definition at line 21 of file TVStatic.cpp.

References combineScanline, and CombineMaterial< materialCount >::GetRGB().

◆ Update()

void Update ( float ratio )

virtual

Updates the animation parameters for the TV static effect.

Parameters

ratio The elapsed time ratio for updating animations.

Implements AnimatedMaterial.

Definition at line 3 of file TVStatic.cpp.

References colorTest, colorWiggle1, colorWiggle2, gNoiseMat, GradientMaterial< colorCount >::GradientShift(), GradientMaterial< colorCount >::HueShift(), Mathematics::Map(), scanlineGradient, GradientMaterial< colorCount >::SetGradientPeriod(), SimplexNoise< colors >::SetScale(), SimplexNoise< colors >::SetZPosition(), simplexNoiseDepth, sNoise, and FunctionGenerator::Update().

Referenced by UnicornZhenjaAnimation::Update().

Member Data Documentation

◆ colorTest

ColorTest colorTest = ColorTest(Vector2D(192.0f, 96.0f), Vector2D(140.0f, 72.0f))

private

Color test overlay.

Definition at line 64 of file TVStatic.h.

Referenced by TVStatic(), and Update().

◆ colorWiggle1

FunctionGenerator colorWiggle1 = FunctionGenerator(FunctionGenerator::Sine, -40.0f, 20.0f, 1.95f)

private

Function for animating color wiggles.

Definition at line 32 of file TVStatic.h.

Referenced by Update().

◆ colorWiggle2

FunctionGenerator colorWiggle2 = FunctionGenerator(FunctionGenerator::Sine, -10.0f, 10.0f, 0.87f)

private

Secondary function for color variation.

Definition at line 33 of file TVStatic.h.

Referenced by Update().

◆ combineScanline

CombineMaterial<3> combineScanline = CombineMaterial<3>()

private

Material combiner for layering effects.

Definition at line 65 of file TVStatic.h.

Referenced by GetMaterial(), GetRGB(), and TVStatic().

◆ fGenMatGradient

FunctionGenerator fGenMatGradient = FunctionGenerator(FunctionGenerator::Sine, 0.0f, 0.5f, 6.65f)

private

Function for gradient animation.

Definition at line 34 of file TVStatic.h.

◆ gNoiseMat

GradientMaterial<5> gNoiseMat = GradientMaterial<5>(noiseSpectrum, 2.0f, false, true)

private

Gradient for simplex noise material.

Definition at line 44 of file TVStatic.h.

Referenced by Update().

◆ noiseSpectrum

RGBColor noiseSpectrum[5]

private

Initial value:

= {
        RGBColor(255, 255, 255),
        RGBColor(0, 0, 0),
        RGBColor(255, 0, 0),
        RGBColor(0, 255, 0),
        RGBColor(0, 0, 255)
    }

Spectrum for simplex noise coloring.

Definition at line 36 of file TVStatic.h.

◆ scanlineGradient

GradientMaterial<10> scanlineGradient = GradientMaterial<10>(scanlineSpectrum, 100.0f, false, false)

private

Scanline gradient material.

Definition at line 62 of file TVStatic.h.

Referenced by TVStatic(), and Update().

◆ scanlineSpectrum

RGBColor scanlineSpectrum[10]

private

Initial value:

= {
        RGBColor(0, 0, 0),
        RGBColor(0, 0, 0),
        RGBColor(255, 255, 255),
        RGBColor(0, 0, 0),
        RGBColor(255, 255, 255),
        RGBColor(255, 255, 255),
        RGBColor(255, 255, 255),
        RGBColor(0, 0, 0),
        RGBColor(0, 0, 0),
        RGBColor(255, 255, 255)
    }

Spectrum for scanline effects.

Definition at line 49 of file TVStatic.h.

◆ simplexNoiseDepth

float simplexNoiseDepth = 0.0f

private

Depth value for simplex noise animation.

Definition at line 47 of file TVStatic.h.

Referenced by Update().

◆ sNoise

SimplexNoise<5> sNoise = SimplexNoise<5>(1, &gNoiseMat)

private

Simplex noise generator for TV static.

Definition at line 45 of file TVStatic.h.

Referenced by TVStatic(), and Update().

The documentation for this class was generated from the following files:
