Creates a customizable gradient material for rendering. More...

#include <GradientMaterial.h>

Inheritance diagram for GradientMaterial< colorCount >:

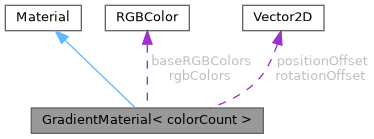

Collaboration diagram for GradientMaterial< colorCount >:

[legend]

Public Member Functions
	GradientMaterial (RGBColor *rgbColors, float gradientPeriod, bool isRadial, bool isStepped=false)
	Constructs a `GradientMaterial` instance.

void	UpdateGradient (RGBColor *rgbColors)
	Updates the colors of the gradient.

void	SetPositionOffset (Vector2D positionOffset)
	Sets the position offset for the gradient.

void	SetRotationOffset (Vector2D rotationOffset)
	Sets the rotation offset for the gradient.

void	SetRotationAngle (float rotationAngle)
	Sets the rotation angle for the gradient.

void	SetGradientPeriod (float gradientPeriod)
	Sets the gradient's period of repetition.

void	GradientShift (float ratio)
	Shifts the gradient by a ratio.

void	HueShift (float hueDeg)
	Shifts the hue of the gradient by a specified degree.

void	UpdateRGB ()
	Updates the RGB colors in the gradient.

RGBColor	GetRGB (const Vector3D &position, const Vector3D &normal, const Vector3D &uvw) override
	Gets the RGB color for a given position in the gradient.

Public Member Functions inherited from Material
virtual	~Material ()=default
	Virtual destructor for proper cleanup in derived classes.

Private Attributes
RGBColor	rgbColors [colorCount]
	Array of colors used in the gradient.

RGBColor *	baseRGBColors
	Pointer to the base RGB colors.

Vector2D	positionOffset
	Offset for the gradient's position.

Vector2D	rotationOffset
	Point about which the gradient rotates.

float	gradientPeriod = 1.0f
	Period of the gradient repetition.

float	rotationAngle = 0.0f
	Angle for rotating the gradient.

bool	isRadial = false
	Whether the gradient is radial.

bool	isStepped = false
	Whether the gradient is stepped.

float	gradientShift = 0.0f
	Shift in the gradient pattern.

Additional Inherited Members
Public Types inherited from Material
enum	Method { Base , Add , Subtract , Multiply , Divide , Darken , Lighten , Screen , Overlay , SoftLight , Replace , EfficientMask , Bypass }
	Defines blending methods for combining colors. More...

Detailed Description

template<size_t colorCount>
class GradientMaterial< colorCount >

Creates a customizable gradient material for rendering.

The GradientMaterial class supports linear and radial gradients, with options for stepping, position and rotation offsets, and period adjustments.

Template Parameters

colorCount Number of colors in the gradient.

Definition at line 30 of file GradientMaterial.h.

Constructor & Destructor Documentation

◆ GradientMaterial()

template<size_t colorCount>

GradientMaterial	(	RGBColor *	rgbColors,
		float	gradientPeriod,
		bool	isRadial,
		bool	isStepped = `false`
	)

Constructs a GradientMaterial instance.

Parameters

rgbColors	Array of colors for the gradient.
gradientPeriod	Period of the gradient repetition.
isRadial	Whether the gradient is radial.
isStepped	Whether the gradient is stepped.

Member Function Documentation

◆ GetRGB()

template<size_t colorCount>

RGBColor GetRGB	(	const Vector3D &	position,
		const Vector3D &	normal,
		const Vector3D &	uvw
	)

overridevirtual

Gets the RGB color for a given position in the gradient.

Parameters

position	3D position in the gradient.
normal	Normal vector at the position.
uvw	Texture coordinates at the position.

Returns: The calculated RGB color.

Implements Material.

Referenced by HorizontalRainbow::GetRGB(), and DepthMaterial::GetRGB().

◆ GradientShift()

template<size_t colorCount>

void GradientShift ( float ratio )

Shifts the gradient by a ratio.

Parameters

ratio The ratio by which to shift the gradient.

Referenced by TVStatic::Update(), and XenraxAnimation::Update().

◆ HueShift()

template<size_t colorCount>

void HueShift ( float hueDeg )

Shifts the hue of the gradient by a specified degree.

Parameters

hueDeg Degrees by which to shift the gradient's hue.

Referenced by RainbowNoise::Update(), RainbowNoise2::Update(), TVStatic::Update(), ProtogenArtleckAnimation::Update(), WaffleDaProtoAnimation::Update(), InfraredAnimation::Update(), ProtobottAnimation::Update(), and NukudeFaceAnimation::Update().

◆ SetGradientPeriod()

template<size_t colorCount>

void SetGradientPeriod ( float gradientPeriod )

Sets the gradient's period of repetition.

Parameters

gradientPeriod The new gradient period.

Referenced by FlowNoise::Update(), HorizontalRainbow::Update(), RainbowNoise::Update(), RainbowNoise2::Update(), TVStatic::Update(), ProtogenArtleckAnimation::Update(), WaffleDaProtoAnimation::Update(), and NukudeFaceAnimation::Update().

◆ SetPositionOffset()

template<size_t colorCount>

void SetPositionOffset ( Vector2D positionOffset )

Sets the position offset for the gradient.

Parameters

positionOffset The new position offset.

Referenced by HorizontalRainbow::Update().

◆ SetRotationAngle()

template<size_t colorCount>

void SetRotationAngle ( float rotationAngle )

Sets the rotation angle for the gradient.

Parameters

rotationAngle The new rotation angle in degrees.

Referenced by XenraxAnimation::Battery(), BroookAnimation::BroookAnimation(), SergaliciousAnimation::SergaliciousAnimation(), StrawberryAnimation::StrawberryAnimation(), TVStatic::TVStatic(), HorizontalRainbow::Update(), and Warzone2Animation::Warzone2Animation().

◆ SetRotationOffset()

template<size_t colorCount>

void SetRotationOffset ( Vector2D rotationOffset )

Sets the rotation offset for the gradient.

Parameters

rotationOffset The new rotation offset point.

◆ UpdateGradient()

template<size_t colorCount>

void UpdateGradient ( RGBColor * rgbColors )

Updates the colors of the gradient.

Parameters

rgbColors New array of colors for the gradient.

Referenced by FlowNoise::SetGradient(), HUB75AnimationSplit::Update(), WS35AnimationSplit::Update(), and ProtogenProject::UpdateFace().

◆ UpdateRGB()

template<size_t colorCount>

void UpdateRGB ( )

Updates the RGB colors in the gradient.

Referenced by SammyAnimation::Update(), TechSaneAnimation::Update(), HUB75AnimationSplit::Update(), and WS35AnimationSplit::Update().

Member Data Documentation

◆ baseRGBColors

template<size_t colorCount>

RGBColor* baseRGBColors

private

Pointer to the base RGB colors.

Definition at line 33 of file GradientMaterial.h.

◆ gradientPeriod

template<size_t colorCount>

float gradientPeriod = 1.0f

private

Period of the gradient repetition.

Definition at line 36 of file GradientMaterial.h.

◆ gradientShift

template<size_t colorCount>

float gradientShift = 0.0f

private

Shift in the gradient pattern.

Definition at line 40 of file GradientMaterial.h.

◆ isRadial

template<size_t colorCount>

bool isRadial = false

private

Whether the gradient is radial.

Definition at line 38 of file GradientMaterial.h.

◆ isStepped

template<size_t colorCount>

bool isStepped = false

private

Whether the gradient is stepped.

Definition at line 39 of file GradientMaterial.h.

◆ positionOffset

template<size_t colorCount>

Vector2D positionOffset

private

Offset for the gradient's position.

Definition at line 34 of file GradientMaterial.h.

◆ rgbColors

template<size_t colorCount>

RGBColor rgbColors[colorCount]

private

Array of colors used in the gradient.

Definition at line 32 of file GradientMaterial.h.

◆ rotationAngle

template<size_t colorCount>

float rotationAngle = 0.0f

private

Angle for rotating the gradient.

Definition at line 37 of file GradientMaterial.h.

◆ rotationOffset

template<size_t colorCount>

Vector2D rotationOffset

private

Point about which the gradient rotates.

Definition at line 35 of file GradientMaterial.h.

The documentation for this class was generated from the following file:

GradientMaterial.h
