Wiring Your Protogen
Sensor Wiring Diagram

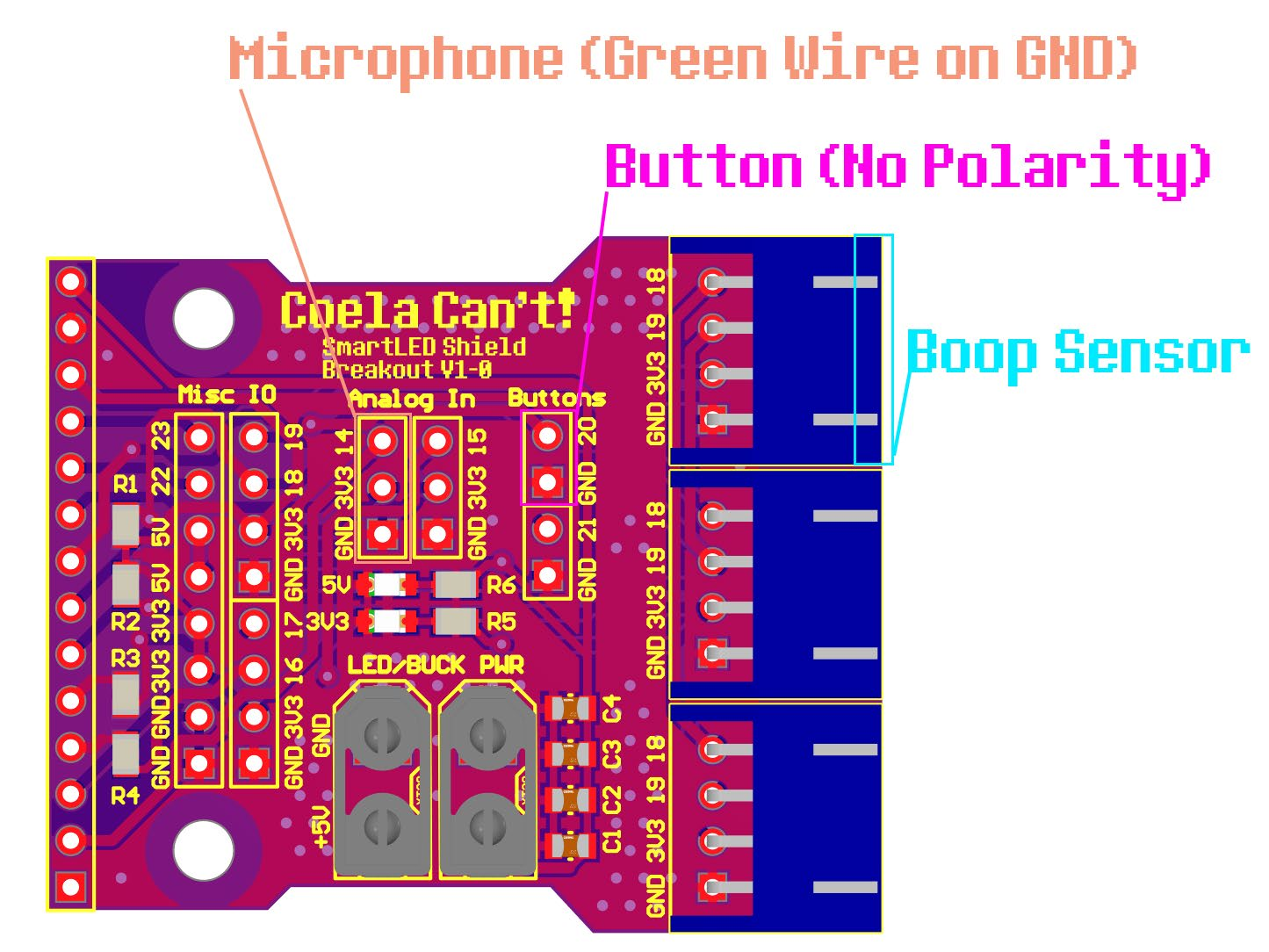

Section titled “Sensor Wiring Diagram”The following diagram details the connections for the MAX9814 microphone, the APDS-9960 boop sensor, and the face control button. The power does not matter but the XT30 connections can only be inserted in one way. Power from the USB Buck Converter to the breakout board, from the breakout board to the LED Panels. Do not bypass the breakout board or it will not provide power to the Teensy.
Wiring Pictures

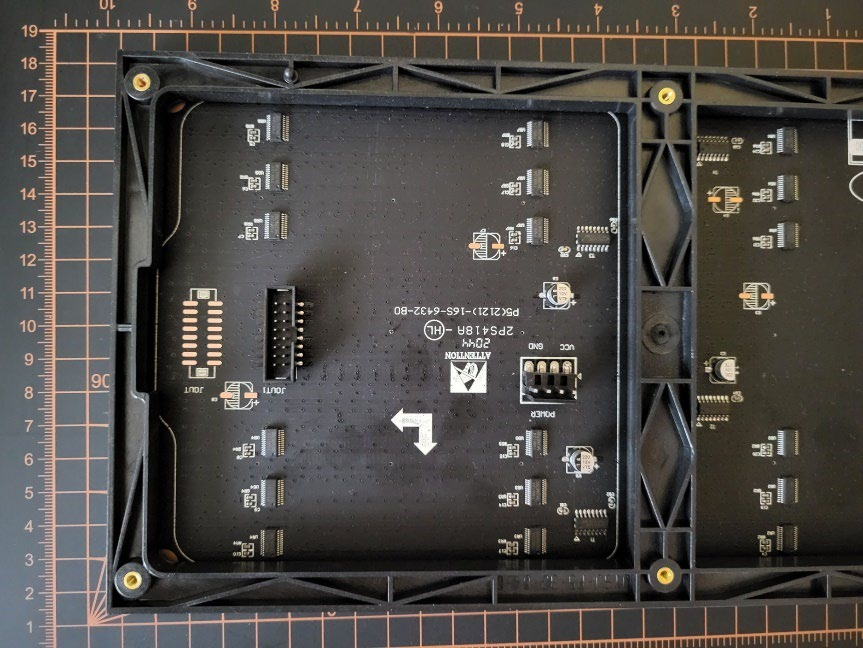

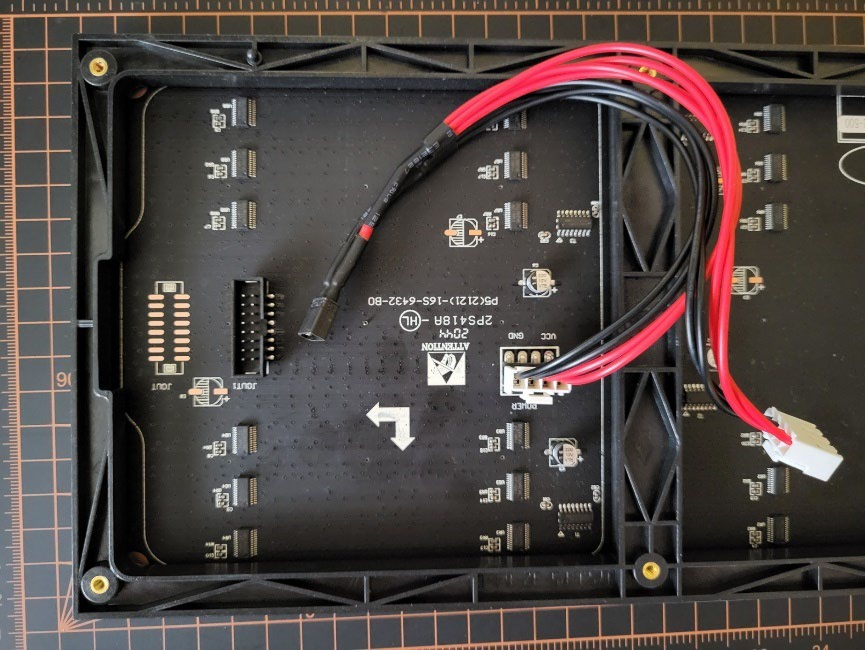

Section titled “Wiring Pictures”Connecting the Controller
Section titled “Connecting the Controller”

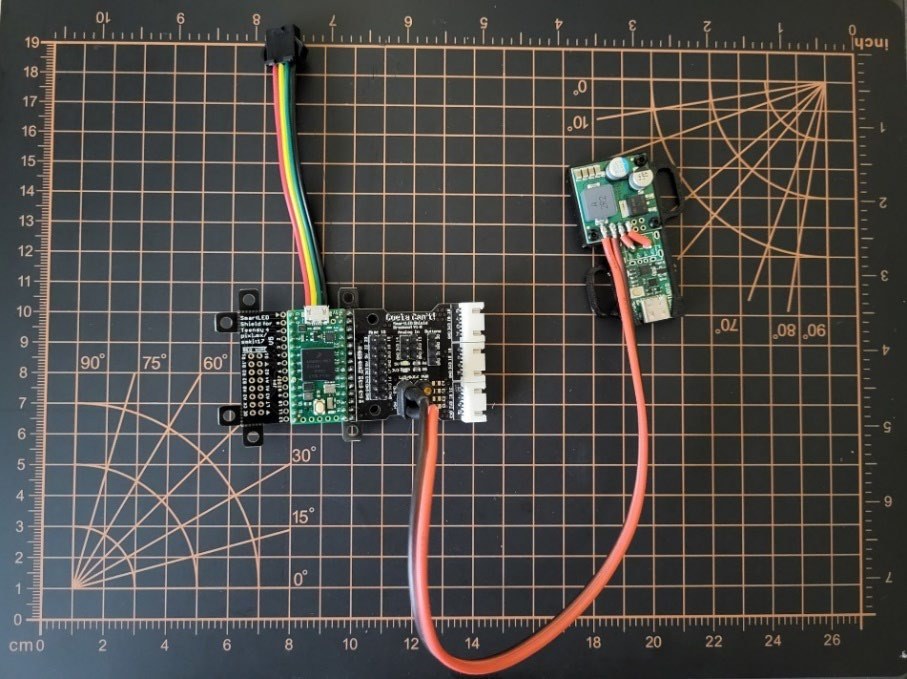

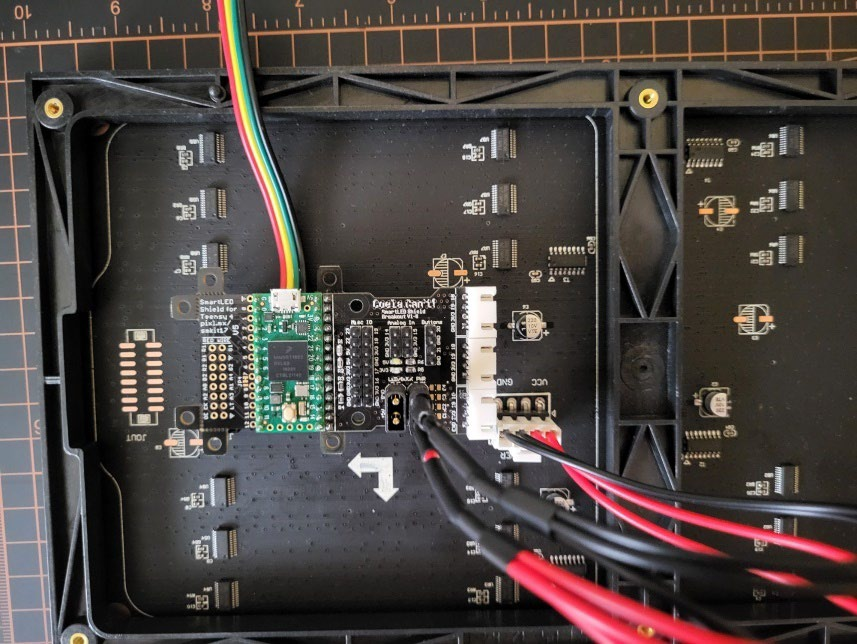

Wiring the USB Power Source
Section titled “Wiring the USB Power Source”

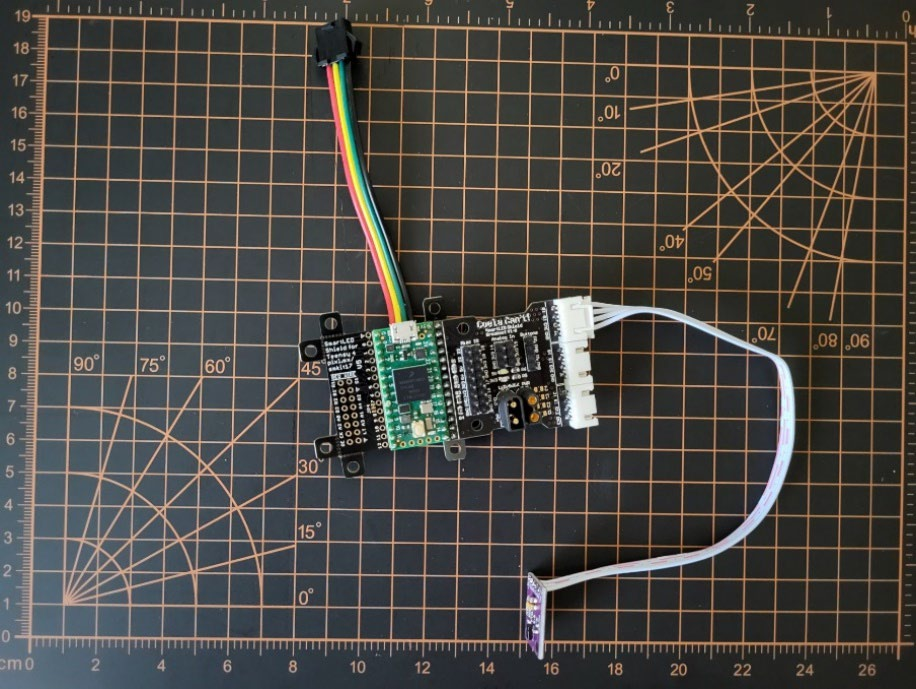

Wiring the Boop Sensor
Section titled “Wiring the Boop Sensor”

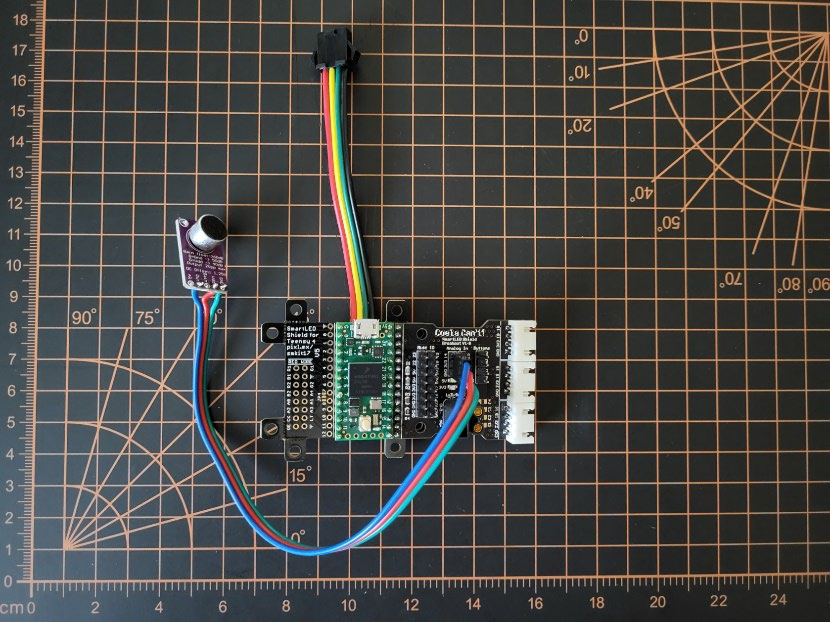

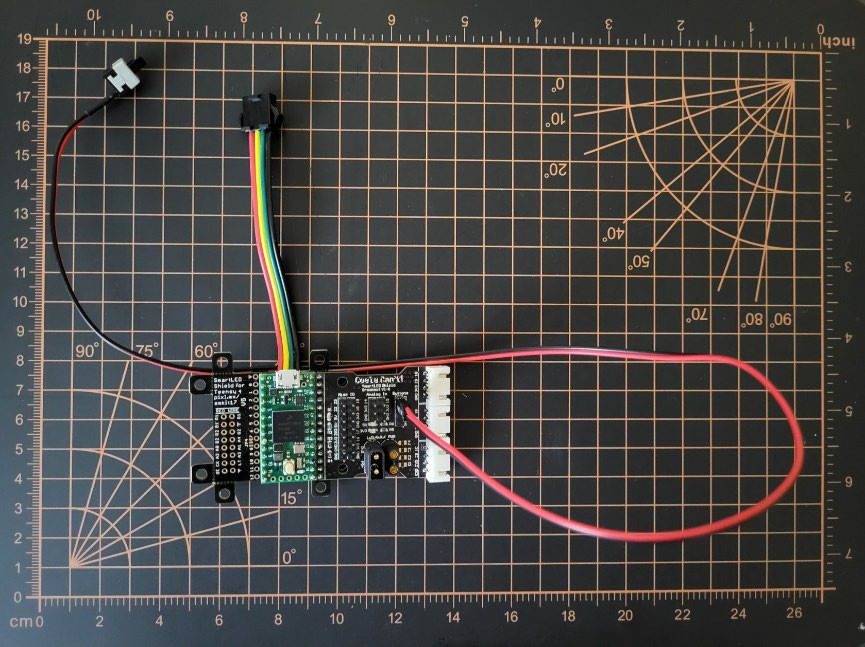

Wiring the Microphone
Section titled “Wiring the Microphone”

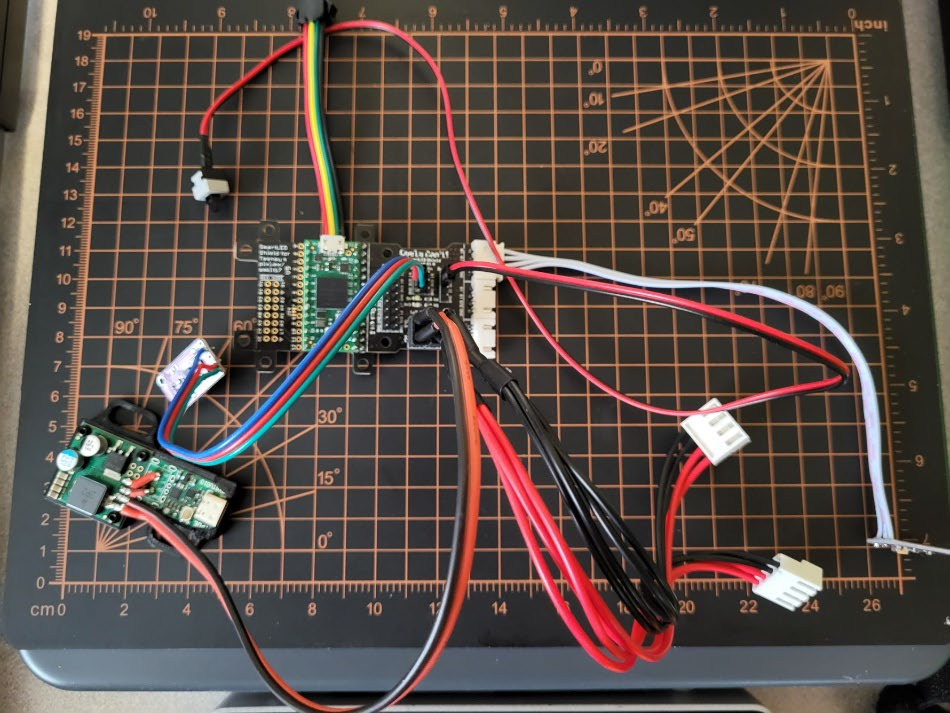

Wiring the Control Button and Final Assembly
Section titled “Wiring the Control Button and Final Assembly”
