Wiring

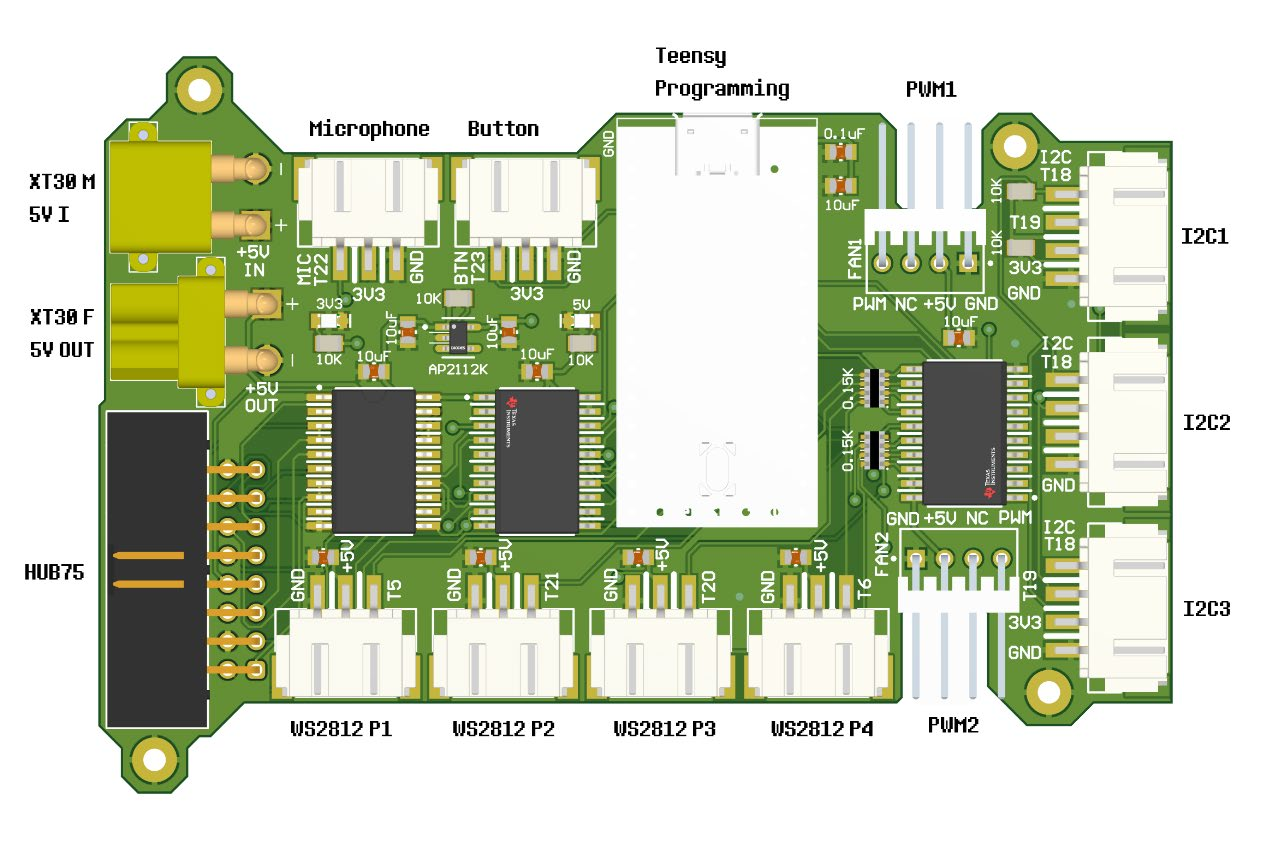

Top Connector Pinout
Section titled “Top Connector Pinout”

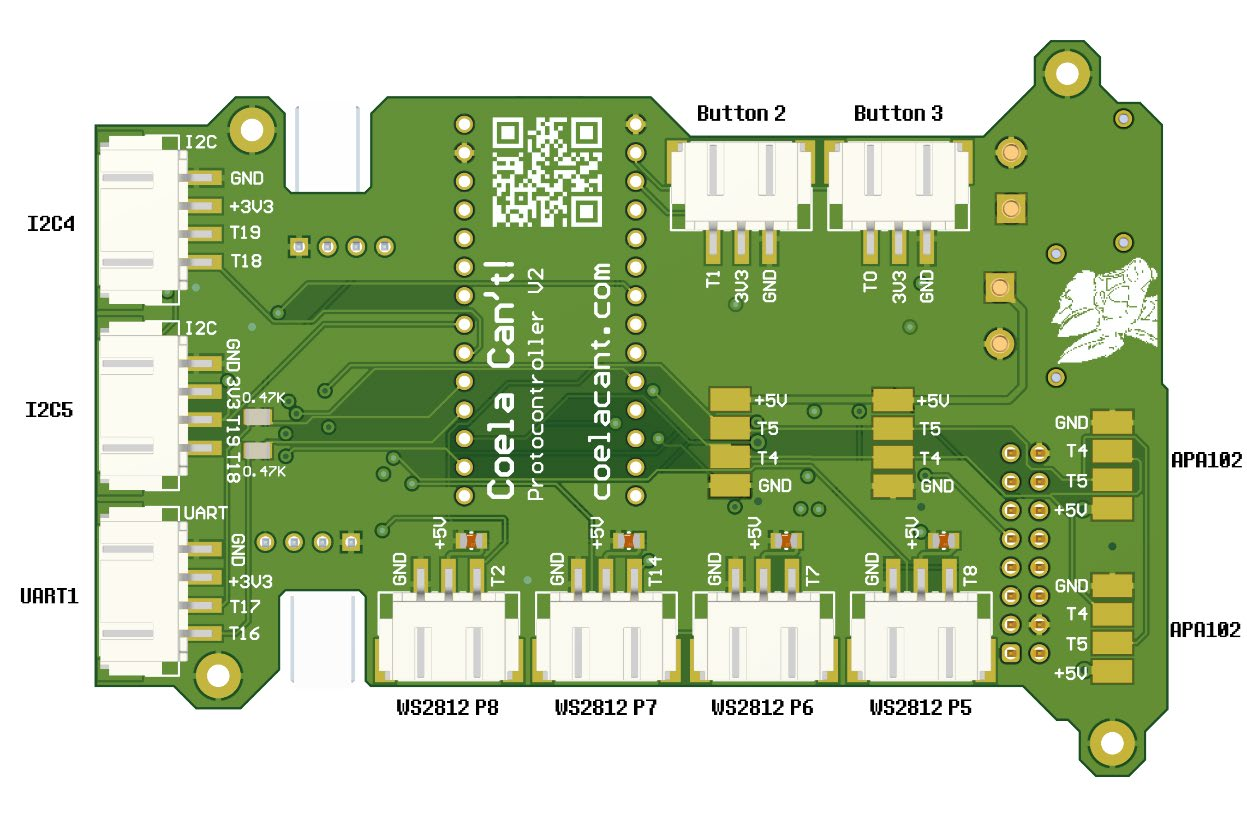

Bottom Connector Pinout
Section titled “Bottom Connector Pinout”
Programming
Section titled “Programming”General Recommendations and Notes
Section titled “General Recommendations and Notes”Power Supply Requirements
Section titled “Power Supply Requirements”- Ensure that the XT30 connector is supplied with 5V directly
- The controller operates within a voltage range of 4.5V to 5.5V
- Any voltage outside this range is beyond the specified limits
- The onboard voltage regulation is designed for 5V input only; other voltages require external regulation
I/O Pin Safety
Section titled “I/O Pin Safety”- Avoid short-circuiting the I/O pins
- Refer to the schematic section for active pin designations
- When making or modifying connections, always verify the polarity to prevent damage
- The controller has reverse voltage protection, but verifying polarity is still recommended
Environmental Conditions
Section titled “Environmental Conditions”- Operating temperature range: 0°C to +40°C
- Recommended temperature range: 5°C to 30°C for reliable functioning
- Exercise caution with humidity, as it can damage the electronics
- Maximum humidity: 90% (non-condensing)
- The controller is not waterproof—any exposure to water can cause irreversible damage
Troubleshooting
Section titled “Troubleshooting”- If you encounter any issues with the controller, contact me before attempting repairs to avoid further damage
- In the event of water exposure, promptly disconnect power
