Controller Class Reference

Base class for managing brightness and display operations of lighting controllers. More...

#include <Controller.h>

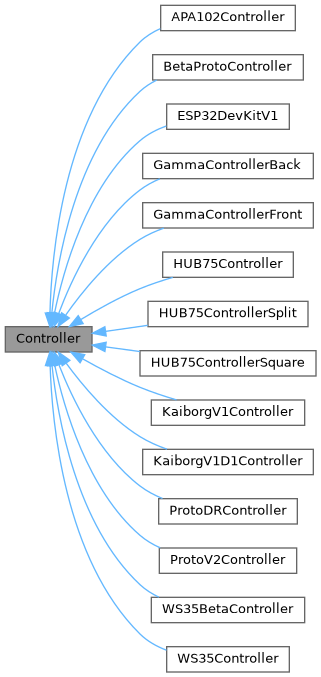

Inheritance diagram for Controller:

Collaboration diagram for Controller:

Public Member Functions
virtual void	Initialize ()=0
	Initializes the controller.
virtual void	Display ()=0
	Updates and displays content on the lighting system.
uint8_t	GetBrightness ()
	Retrieves the current brightness level.
uint8_t	GetAccentBrightness ()
	Retrieves the current accent brightness level.
virtual void	SetBrightness (uint8_t maxBrightness)=0
	Sets the maximum brightness for the controller.
virtual void	SetAccentBrightness (uint8_t maxAccentBrightness)=0
	Sets the maximum accent brightness for the controller.

Protected Member Functions
	Controller (CameraManager *cameras, uint8_t maxBrightness, uint8_t maxAccentBrightness)
	Constructs a Controller with specified parameters.
void	UpdateBrightness ()
	Updates the brightness based on internal logic.

Protected Attributes
CameraManager *	cameras
	Pointer to the CameraManager for managing camera data.
uint8_t	brightness
	Current brightness level.
uint8_t	accentBrightness
	Current accent brightness level.
uint8_t	maxBrightness
	Maximum allowed brightness level.
uint8_t	maxAccentBrightness
	Maximum allowed accent brightness level.
bool	isOn = false
	Indicates if the controller is active.
bool	startTime = false
	Indicates if the start time has been recorded.

Private Attributes
const uint32_t	softStart = 5000000
	Duration for soft start in microseconds.
uint32_t	previousTime
	Tracks the last update time.

Detailed Description

Base class for managing brightness and display operations of lighting controllers.

The Controller class provides an abstract interface and shared functionality for managing lighting systems, including brightness adjustment and display updates.

Definition at line 25 of file Controller.h.

Constructor & Destructor Documentation

Controller()

Controller ( CameraManager *  cameras, uint8_t  maxBrightness, uint8_t  maxAccentBrightness  )

protected

Constructs a Controller with specified parameters.

Parameters

cameras	Pointer to the CameraManager.
maxBrightness	Maximum brightness for the controller.
maxAccentBrightness	Maximum accent brightness for the controller.

Definition at line 3 of file Controller.cpp.

References cameras, maxAccentBrightness, and maxBrightness.

Member Function Documentation

Display()

virtual void Display ( )

pure virtual

Updates and displays content on the lighting system.

Implemented in APA102Controller, BetaProtoController, ProtoV2Controller, ESP32DevKitV1, GammaControllerBack, GammaControllerFront, KaiborgV1Controller, KaiborgV1D1Controller, ProtoDRController, HUB75Controller, HUB75ControllerSplit, HUB75ControllerSquare, WS35BetaController, and WS35Controller.

Referenced by Project::Display().

GetAccentBrightness()

uint8_t GetAccentBrightness

(

)

Retrieves the current accent brightness level.

Returns

The current accent brightness as an 8-bit value.

Definition at line 29 of file Controller.cpp.

References accentBrightness.

GetBrightness()

uint8_t GetBrightness

(

)

Retrieves the current brightness level.

Returns

The current brightness as an 8-bit value.

Definition at line 25 of file Controller.cpp.

References brightness.

Initialize()

virtual void Initialize ( )

pure virtual

Initializes the controller.

Implemented in APA102Controller, BetaProtoController, ProtoV2Controller, ESP32DevKitV1, GammaControllerBack, GammaControllerFront, KaiborgV1Controller, KaiborgV1D1Controller, ProtoDRController, HUB75Controller, HUB75ControllerSplit, HUB75ControllerSquare, WS35BetaController, and WS35Controller.

Referenced by ProtogenProject::Initialize().

SetAccentBrightness()

virtual void SetAccentBrightness ( uint8_t  maxAccentBrightness )

pure virtual

Sets the maximum accent brightness for the controller.

Parameters

maxAccentBrightness

The maximum accent brightness value (0-255). This is the secondary display if available.

Implemented in HUB75ControllerSplit, APA102Controller, HUB75Controller, HUB75ControllerSquare, WS35BetaController, and WS35Controller.

SetBrightness()

virtual void SetBrightness ( uint8_t  maxBrightness )

pure virtual

Sets the maximum brightness for the controller.

Parameters

maxBrightness

The maximum brightness value (0-255).

Implemented in HUB75ControllerSplit, APA102Controller, HUB75Controller, HUB75ControllerSquare, WS35BetaController, and WS35Controller.

UpdateBrightness()

void UpdateBrightness ( )

protected

Updates the brightness based on internal logic.

Definition at line 9 of file Controller.cpp.

References accentBrightness, brightness, isOn, Mathematics::Map(), maxAccentBrightness, maxBrightness, previousTime, softStart, and startTime.

Referenced by APA102Controller::Display(), HUB75Controller::Display(), HUB75ControllerSplit::Display(), HUB75ControllerSquare::Display(), WS35BetaController::Display(), and WS35Controller::Display().

Member Data Documentation

accentBrightness

uint8_t accentBrightness

protected

Current accent brightness level.

Definition at line 33 of file Controller.h.

Referenced by BetaProtoController::Display(), KaiborgV1D1Controller::Display(), HUB75Controller::Display(), HUB75ControllerSplit::Display(), GetAccentBrightness(), HUB75ControllerSplit::SetAccentBrightness(), APA102Controller::SetAccentBrightness(), HUB75Controller::SetAccentBrightness(), HUB75ControllerSquare::SetAccentBrightness(), WS35BetaController::SetAccentBrightness(), WS35Controller::SetAccentBrightness(), and UpdateBrightness().

brightness

uint8_t brightness

protected

Current brightness level.

Definition at line 32 of file Controller.h.

Referenced by APA102Controller::Display(), BetaProtoController::Display(), ProtoV2Controller::Display(), ESP32DevKitV1::Display(), GammaControllerBack::Display(), GammaControllerFront::Display(), KaiborgV1Controller::Display(), KaiborgV1D1Controller::Display(), ProtoDRController::Display(), HUB75Controller::Display(), HUB75ControllerSplit::Display(), HUB75ControllerSquare::Display(), WS35BetaController::Display(), WS35Controller::Display(), GetBrightness(), HUB75ControllerSplit::SetBrightness(), APA102Controller::SetBrightness(), HUB75Controller::SetBrightness(), HUB75ControllerSquare::SetBrightness(), WS35BetaController::SetBrightness(), WS35Controller::SetBrightness(), and UpdateBrightness().

cameras

CameraManager* cameras

protected

Pointer to the CameraManager for managing camera data.

Definition at line 31 of file Controller.h.

Referenced by Controller(), APA102Controller::Display(), HUB75Controller::Display(), HUB75ControllerSplit::Display(), HUB75ControllerSquare::Display(), WS35BetaController::Display(), and WS35Controller::Display().

isOn

bool isOn = false

protected

Indicates if the controller is active.

Definition at line 36 of file Controller.h.

Referenced by HUB75ControllerSplit::SetAccentBrightness(), APA102Controller::SetAccentBrightness(), HUB75Controller::SetAccentBrightness(), HUB75ControllerSquare::SetAccentBrightness(), WS35BetaController::SetAccentBrightness(), WS35Controller::SetAccentBrightness(), HUB75ControllerSplit::SetBrightness(), APA102Controller::SetBrightness(), HUB75Controller::SetBrightness(), HUB75ControllerSquare::SetBrightness(), WS35BetaController::SetBrightness(), WS35Controller::SetBrightness(), and UpdateBrightness().

maxAccentBrightness

uint8_t maxAccentBrightness

protected

Maximum allowed accent brightness level.

Definition at line 35 of file Controller.h.

Referenced by Controller(), HUB75ControllerSplit::SetAccentBrightness(), APA102Controller::SetAccentBrightness(), HUB75Controller::SetAccentBrightness(), HUB75ControllerSquare::SetAccentBrightness(), WS35BetaController::SetAccentBrightness(), WS35Controller::SetAccentBrightness(), and UpdateBrightness().

maxBrightness

uint8_t maxBrightness

protected

Maximum allowed brightness level.

Definition at line 34 of file Controller.h.

Referenced by Controller(), HUB75ControllerSplit::SetBrightness(), APA102Controller::SetBrightness(), HUB75Controller::SetBrightness(), HUB75ControllerSquare::SetBrightness(), WS35BetaController::SetBrightness(), WS35Controller::SetBrightness(), and UpdateBrightness().

previousTime

uint32_t previousTime

private

Tracks the last update time.

Definition at line 28 of file Controller.h.

Referenced by UpdateBrightness().

softStart

const uint32_t softStart = 5000000

private

Duration for soft start in microseconds.

Definition at line 27 of file Controller.h.

Referenced by UpdateBrightness().

startTime

bool startTime = false

protected

Indicates if the start time has been recorded.

Definition at line 37 of file Controller.h.

Referenced by UpdateBrightness().

---

The documentation for this class was generated from the following files:

• Controller.h
• Controller.cpp
