A dynamic oscilloscope material for visualizing audio signals. More...

#include <Oscilloscope.h>

Inheritance diagram for Oscilloscope:

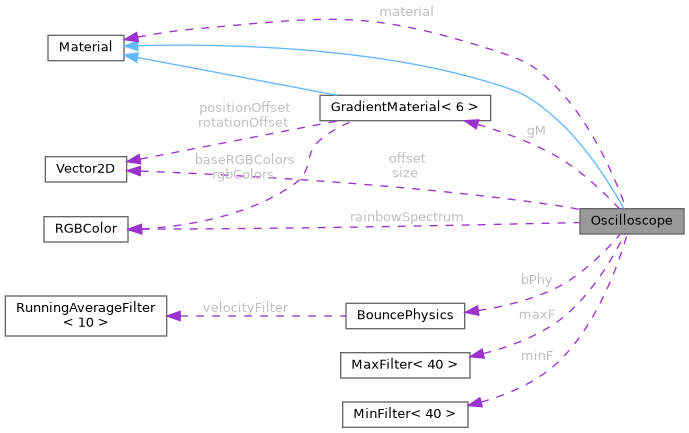

Collaboration diagram for Oscilloscope:

[legend]

Public Member Functions
	Oscilloscope (Vector2D size, Vector2D offset)
	Constructs an Oscilloscope with the specified size and offset.

	~Oscilloscope ()
	Destroys the Oscilloscope instance.

void	SetMaterial (Material *material)
	Sets an additional material for visual effects.

float *	GetSampleData ()
	Retrieves the current sample data.

void	SetSize (Vector2D size)
	Sets the size of the oscilloscope visualization.

void	SetPosition (Vector2D offset)
	Sets the position of the oscilloscope visualization.

void	SetRotation (float angle)
	Sets the rotation angle of the visualization.

void	SetHueAngle (float hueAngle)
	Sets the hue angle for color adjustments.

void	Update (float *data)
	Updates the oscilloscope visualization based on new audio data.

RGBColor	GetRGB (const Vector3D &position, const Vector3D &normal, const Vector3D &uvw) override
	Computes the color at a given position in the visualization.

Public Member Functions inherited from Material
virtual	~Material ()=default
	Virtual destructor for proper cleanup in derived classes.

Private Attributes
BouncePhysics *	bPhy [128]
	Array of BouncePhysics instances for dynamic bouncing behavior.

Vector2D	size
	The size of the oscilloscope visualization.

Vector2D	offset
	The position offset of the visualization.

float	angle = 0.0f
	Rotation angle of the visualization.

float	hueAngle = 0.0f
	Hue angle for color adjustments.

float	radius = 40.0f
	Radius for circular visualization patterns.

uint8_t	colors
	Number of colors in the gradient.

float *	data
	Pointer to the audio sample data.

float	midPoint = 0.0f
	Midpoint for audio data normalization.

uint8_t	bins = 128
	Number of bins for audio data processing.

MaxFilter< 40 >	maxF = MaxFilter<40>()
	Filter for tracking maximum values.

MinFilter< 40 >	minF = MinFilter<40>()
	Filter for tracking minimum values.

RGBColor	rainbowSpectrum [6] = {RGBColor(255, 0, 0), RGBColor(255, 255, 0), RGBColor(0, 255, 0), RGBColor(0, 255, 255), RGBColor(0, 0, 255), RGBColor(255, 0, 255)}
	Predefined rainbow colors.

GradientMaterial< 6 >	gM = GradientMaterial<6>(rainbowSpectrum, 1.0f, false)
	Gradient material for the rainbow spectrum.

Material *	material
	Pointer to an additional material for effects.

float	minValue

float	maxValue
	Minimum and maximum values for data scaling.

Additional Inherited Members
Public Types inherited from Material
enum	Method { Base , Add , Subtract , Multiply , Divide , Darken , Lighten , Screen , Overlay , SoftLight , Replace , EfficientMask , Bypass }
	Defines blending methods for combining colors. More...

Detailed Description

A dynamic oscilloscope material for visualizing audio signals.

The Oscilloscope class provides real-time visualization of audio signals, featuring bouncing physics, gradient colors, and customizable attributes such as size, position, and rotation.

Definition at line 29 of file Oscilloscope.h.

Constructor & Destructor Documentation

◆ Oscilloscope()

Oscilloscope	(	Vector2D	size,
		Vector2D	offset
	)

Constructs an Oscilloscope with the specified size and offset.

Parameters

size	The size of the oscilloscope visualization.
offset	The position offset of the visualization.

Definition at line 3 of file Oscilloscope.cpp.

References Vector2D::Divide(), gM, material, offset, and size.

◆ ~Oscilloscope()

~Oscilloscope ( )

Destroys the Oscilloscope instance.

Definition at line 9 of file Oscilloscope.cpp.

References bPhy.

Member Function Documentation

◆ GetRGB()

RGBColor GetRGB	(	const Vector3D &	position,
		const Vector3D &	normal,
		const Vector3D &	uvw
	)

overridevirtual

Computes the color at a given position in the visualization.

Parameters

position	The position in 3D space.
normal	The surface normal vector.
uvw	The texture coordinates.

Returns: The computed color as an RGBColor.

Implements Material.

Definition at line 48 of file Oscilloscope.cpp.

References angle, bins, Mathematics::CosineInterpolation(), data, Material::GetRGB(), hueAngle, RGBColor::HueShift(), Mathematics::IsClose(), Mathematics::Map(), material, maxValue, minValue, offset, Vector2D::Rotate(), size, Vector2D::X, Vector3D::X, Vector2D::Y, and Vector3D::Y.

◆ GetSampleData()

float * GetSampleData ( )

Retrieves the current sample data.

Returns: Pointer to the audio sample data array.

Definition at line 19 of file Oscilloscope.cpp.

References data.

◆ SetHueAngle()

void SetHueAngle ( float hueAngle )

Sets the hue angle for color adjustments.

Parameters

hueAngle The new hue angle in degrees.

Definition at line 35 of file Oscilloscope.cpp.

References hueAngle.

◆ SetMaterial()

void SetMaterial ( Material * material )

Sets an additional material for visual effects.

Parameters

material Pointer to the Material instance.

Definition at line 15 of file Oscilloscope.cpp.

References material.

◆ SetPosition()

void SetPosition ( Vector2D offset )

Sets the position of the oscilloscope visualization.

Parameters

offset The new position offset as a Vector2D.

Definition at line 27 of file Oscilloscope.cpp.

References offset.

◆ SetRotation()

void SetRotation ( float angle )

Sets the rotation angle of the visualization.

Parameters

angle The new rotation angle in degrees.

Definition at line 31 of file Oscilloscope.cpp.

References angle.

Referenced by GammaAnimation::Update().

◆ SetSize()

void SetSize ( Vector2D size )

Sets the size of the oscilloscope visualization.

Parameters

size	The new size as a Vector2D.

Definition at line 23 of file Oscilloscope.cpp.

References Vector2D::Divide(), and size.

◆ Update()

void Update ( float * data )

Updates the oscilloscope visualization based on new audio data.

Parameters

data	Pointer to the audio sample data array.

Definition at line 39 of file Oscilloscope.cpp.

References bins, data, MaxFilter< memory >::Filter(), MinFilter< memory >::Filter(), maxF, maxValue, midPoint, minF, and minValue.

Referenced by ProtogenProject::OscilloscopeFace(), AphoriAnimation::Update(), BasilGardenAnimation::Update(), BroookAnimation::Update(), HertzzAnimation::Update(), InfraredAnimation::Update(), SammyAnimation::Update(), SergaliciousAnimation::Update(), StrawberryAnimation::Update(), TamamoAnimation::Update(), TechSaneAnimation::Update(), Warzone2Animation::Update(), XenraxAnimation::Update(), GammaAnimation::Update(), HUB75AnimationSplit::Update(), and WS35AnimationSplit::Update().

Member Data Documentation

◆ angle

float angle = 0.0f

private

Rotation angle of the visualization.

Definition at line 34 of file Oscilloscope.h.

Referenced by GetRGB(), and SetRotation().

◆ bins

uint8_t bins = 128

private

Number of bins for audio data processing.

Definition at line 40 of file Oscilloscope.h.

Referenced by GetRGB(), and Update().

◆ bPhy

BouncePhysics* bPhy[128]

private

Array of BouncePhysics instances for dynamic bouncing behavior.

Definition at line 31 of file Oscilloscope.h.

Referenced by ~Oscilloscope().

◆ colors

uint8_t colors

private

Number of colors in the gradient.

Definition at line 37 of file Oscilloscope.h.

◆ data

float* data

private

Pointer to the audio sample data.

Definition at line 38 of file Oscilloscope.h.

Referenced by GetRGB(), GetSampleData(), and Update().

◆ gM

GradientMaterial<6> gM = GradientMaterial<6>(rainbowSpectrum, 1.0f, false)

private

Gradient material for the rainbow spectrum.

Definition at line 46 of file Oscilloscope.h.

Referenced by Oscilloscope().

◆ hueAngle

float hueAngle = 0.0f

private

Hue angle for color adjustments.

Definition at line 35 of file Oscilloscope.h.

Referenced by GetRGB(), and SetHueAngle().

◆ material

Material* material

private

Pointer to an additional material for effects.

Definition at line 48 of file Oscilloscope.h.

Referenced by GetRGB(), Oscilloscope(), and SetMaterial().

◆ maxF

MaxFilter<40> maxF = MaxFilter<40>()

private

Filter for tracking maximum values.

Definition at line 42 of file Oscilloscope.h.

Referenced by Update().

◆ maxValue

float maxValue

private

Minimum and maximum values for data scaling.

Definition at line 50 of file Oscilloscope.h.

Referenced by GetRGB(), and Update().

◆ midPoint

float midPoint = 0.0f

private

Midpoint for audio data normalization.

Definition at line 39 of file Oscilloscope.h.

Referenced by Update().

◆ minF

MinFilter<40> minF = MinFilter<40>()

private

Filter for tracking minimum values.

Definition at line 43 of file Oscilloscope.h.

Referenced by Update().

◆ minValue

float minValue

private

Definition at line 50 of file Oscilloscope.h.

Referenced by GetRGB(), and Update().

◆ offset

Vector2D offset

private

The position offset of the visualization.

Definition at line 33 of file Oscilloscope.h.

Referenced by GetRGB(), Oscilloscope(), and SetPosition().

◆ radius

float radius = 40.0f

private

Radius for circular visualization patterns.

Definition at line 36 of file Oscilloscope.h.

◆ rainbowSpectrum

RGBColor rainbowSpectrum[6] = {RGBColor(255, 0, 0), RGBColor(255, 255, 0), RGBColor(0, 255, 0), RGBColor(0, 255, 255), RGBColor(0, 0, 255), RGBColor(255, 0, 255)}

private

Predefined rainbow colors.

Definition at line 45 of file Oscilloscope.h.

◆ size

Vector2D size

private

The size of the oscilloscope visualization.

Definition at line 32 of file Oscilloscope.h.

Referenced by GetRGB(), Oscilloscope(), and SetSize().

The documentation for this class was generated from the following files:
